B Length
Art.nr. 857-02059
| FRBTB-BXXSB61
|
Detaljer
- Maximum 144 fibre splice capacity
- 16 round ports and 1 oval port

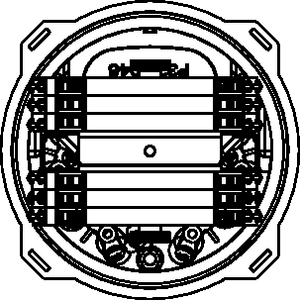

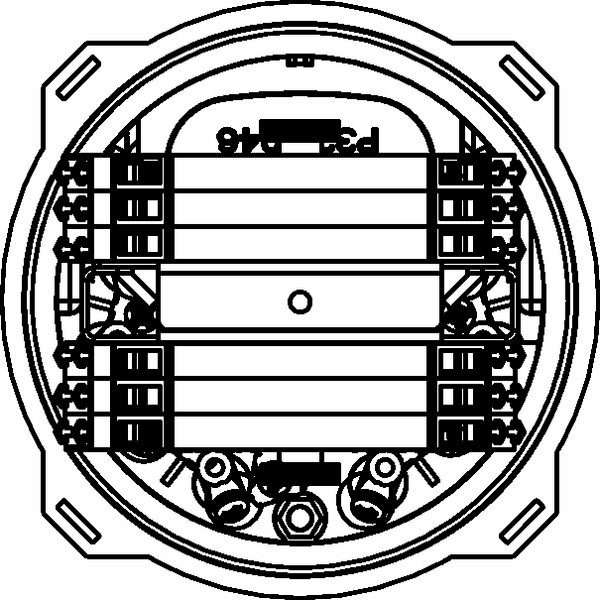

- 6 Hellapon Medium stacked trays
- Maximum 24 splices per tray (double stacked)
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional flash test valve and/or grounding feed-through
Flere produkter i denne produktgruppen:
| Colour | Black (BK) |
| Content |
FRBU 16 Port Base B-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring 6 Hellapon Medium Stacked Trays Tray Support Frame Anchor Fixing Kit (6) Transportation Tubing Hook and Loop Management Ties Cable Ties Isopropyl Alcohol Wipes Desiccant Installation Guide Marker Kit Red Marker 1 - 12 Green Marker 1 – 12 |
| Cover Type | B |
| Method of Sealing | Cablelok, Heatshrink |
| Package Content packed in | box |
| PART DESCRIPTION | FRBTB-BXXSB61 |
| Port | LM, R |
| Port count | 1, 16 |
| Product Family | B Length |
| Product Group | FRBU 16 Port Closure |
| Qty Trays | 6 |

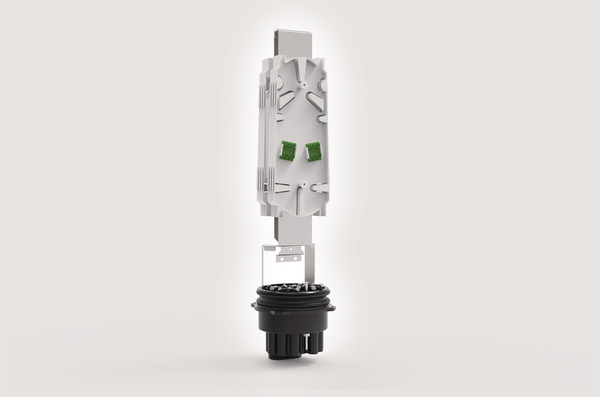

| Technical Description | The FRBU 16 Port B Length closure is supplied with a Polypropylene base. The base configuration of 16 round ports and 1 oval port which accommodate covers a cable diameter range of 1.7 – 9.5mm (R Ports) and 4.0 – 15.0mm (LM port) when using Cablelok mechanical seals. The mounting system is manufactured from Grade 304 stainless steel and is fitted with 6 Hellapon Medium stacked trays fitted with 3A splice bridges giving a maximum of 144 fibre splices based on 24 fibres per tray. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays. |
| Type of Tray | Hellapon Medium |
